- Reliable, low-risk procedure for the diagnosis and treatment of acute or chronic biliary tract and pancreatic diseases
- High image resolution enables more precision in the diagnosis, biopsy and treatment of stones, stenoses, infections and tumors
- Compatible with all common EHL devices
EYEMAX SINGLE-USE VIDEO CHOLANGIOPANCREATICOSCOPY
DIRECT VISUALISATION FOR THE DIAGNOSIS AND TREATMENT IN ENDOSCOPIC SURGERY

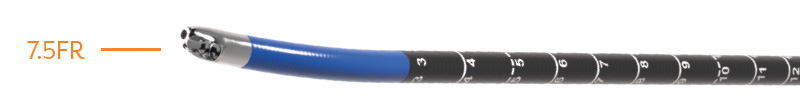

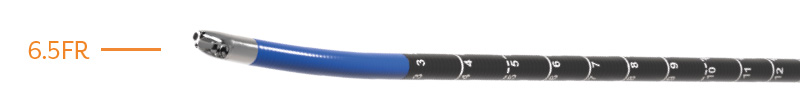

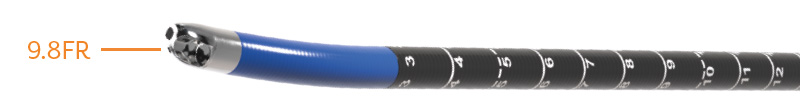

EYEMAX SLIM
ENHANCING PUSHABILITY WHILE MAINTAINING WORKING CHANNEL
Introducing the next generation of cholangioscopy technology, the eyeMAX portfolio now combines the established eyeMAX Cholangioscope with the eyeMAX Slim, expanding the range of options for different clinical needs.
The eyeMAX Slim features a slim catheter diameter while retaining a comparatively large working channel. This design is intended to support manoeuvrability in narrow or proximal duct areas while allowing the use of eyeMAX-compatible accessories such as biopsy forceps.
Combined with high-resolution imaging, reduced radiation exposure, and compatibility with commonly used EHL systems, it offers a reliable solution for precise diagnosis and effective treatment across the biliary and pancreatic tract advancing cholangioscopy even further.
SPECIFIC CHARACTERISTICS
- Maintains working channel diameter while reducing overall catheter diameter
- Access to intrahepatic and pancreatic ducts even in proximal areas
- Stable navigation within narrow lumen
- 130° bending angle for increased manoeuvrability
HIGH-PERFORMANCE PROCESSOR
EFFICIENT IMAGE PROCESSING
- High-quality video image signal
- Easy to operate user interface
- Image enlargement up to 3x
- Adjustable display of the visualisation
EXCELLENT IMAGE QUALITY
The EYEMAX cholangioscope enables excellent high resolution image quality for improved visualisation of the bile and pancreatic ducts which can reduce the number of examinations.

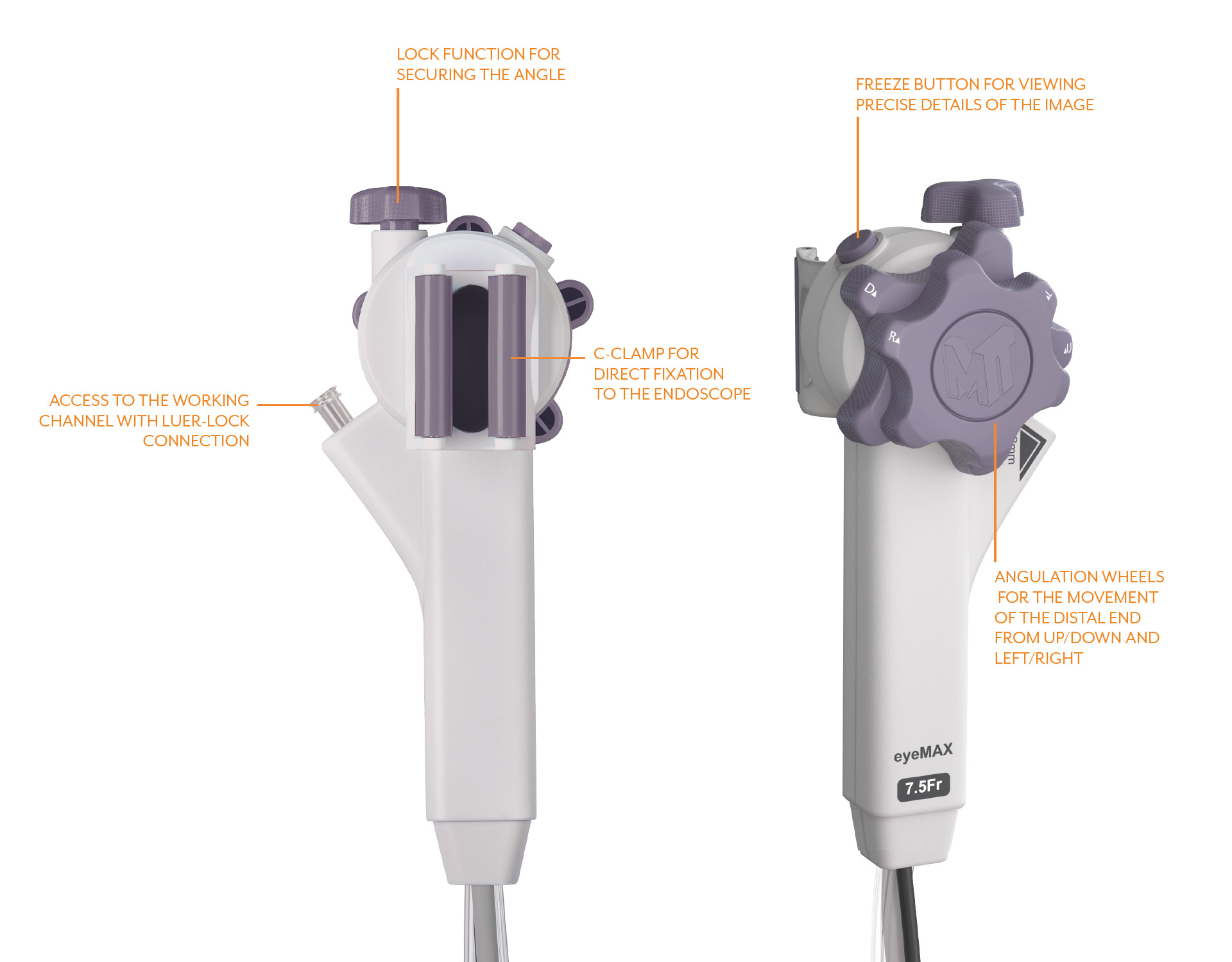

C-CLAMP
CLAMP AND GO
The C-Clamp provides a user-friendly way of securing the eyeMAX Cholangioscope directly to the endoscope.
- Efficiency in daily clinical practice:
Intuitive and quick attachment directly to the endoscope - Easy handling:
For a smooth workflow during the procedure - Ergonomic working:
Axial rotatability ensures fluid movements and natural handling
C-CLAMP
CLAMP AND GO
The C-Clamp provides a user-friendly way of securing the eyeMAX Cholangioscope directly to the endoscope.
- Efficiency in daily clinical practice:
Intuitive and quick attachment directly to the endoscope - Easy handling:
For a smooth workflow during the procedure - Ergonomic working:
Axial rotatability ensures fluid movements and natural handling

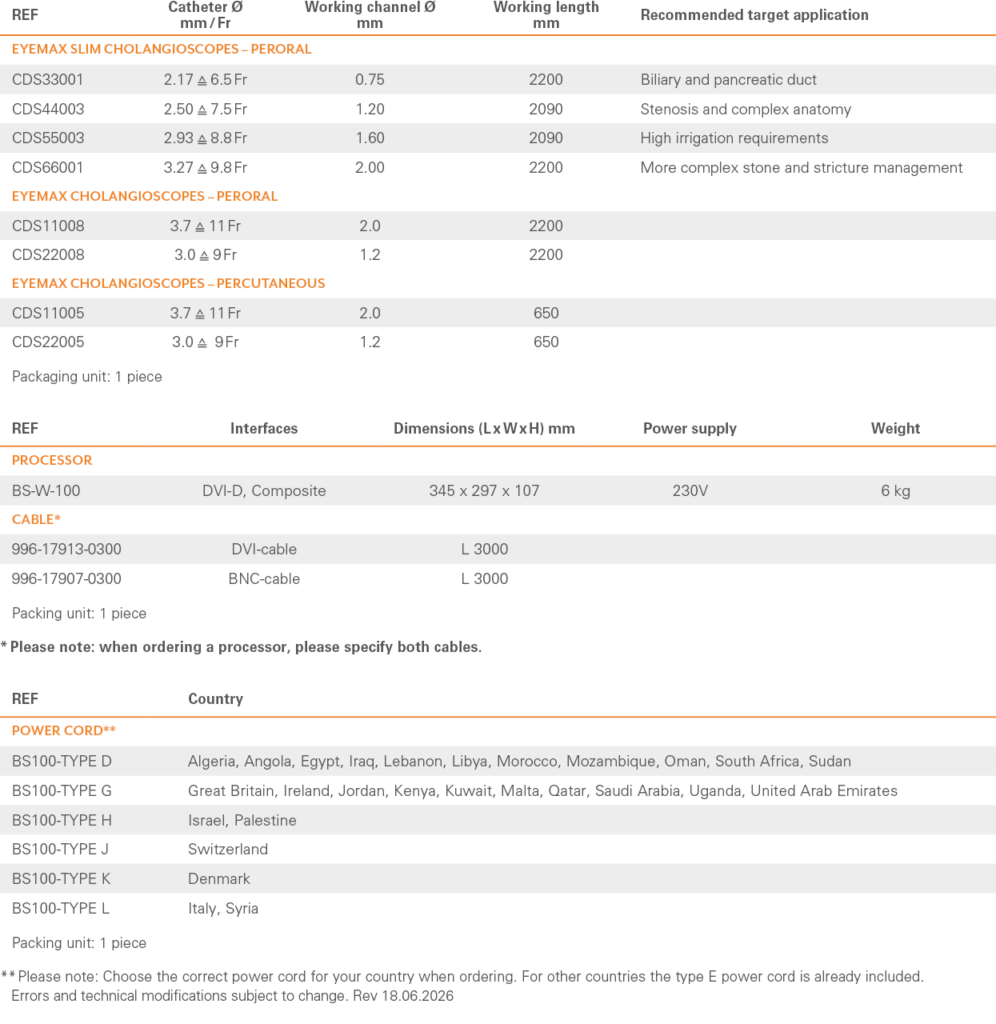

SPECIFICATIONS
